Fraunhofer-Institut IWS

(Dresden, March 18, 2019) Scientists at the Fraunhofer Institute for Material and Beam Technology IWS in Dresden have developed a joining gun that creates a connection between metal and thermoplastic materials within seconds. This gun is of a modular de-sign and can easily be integrated into the production process, for example by mounting on a robot arm in place of a spot welding gun. The advantages of the joining gun will be presented at the Hannover¬messe 2019, Fraunhofer joint booth (hall 6, booth A30). The HeatPressCool-Integrative process HPCI The connection of plastics and metals poses a challenge, due to the different physical properties of the two materials. All conventional joining options, such as bonds using adhesives or rivets have their disadvantages: adhesives need time to harden, which delays further processing. Plastics can be easily damaged during riveting. Furthermore, both adhesive bonding and riveting require additional materials which increases pro-duction costs. The HeatPressCool-Integrative process, developed at the Fraunhofer IWS Dresden, is integrated into the joining gun enabling the direct and precise bonding between metal and plastic components in a matter of seconds. During this process, the two materials are pressed together and the metal at the bonding point is subjected to targeted inductive heat. This causes the thermoplastic material to partially melt, which in turn directly forms a firm bond with the metal as the plastic solidifies. More stable connection by pre-treatment of the metal The Fraunhofer IWS researchers pretreat the metal with lasers to optimize the adhesion between metal and plastic to create anchoring structures. "The special feature of this process is that we use laser ablation to drill relatively deeply into the metal, to a depth of up to a hundred micrometers, where the plastic can penetrate and then cool down, contract and form a secure fit in this structure. This generates a highly stable bond", says Annett Klotzbach. Easy application in proven system technology In order to integrate the joining gun into the existing system technology in manu- facturing operations, it provides a modular structure. It can, for example, be mounted on a robot arm in place of a spot welding gun. The joining gun can be applied wher-ever metal and plastics need to be precisely bonded, for instance in vehicle body construction in the automotive industry or for stainless steel panels in refrigerators or dishwashers. Link to the video: https://www.youtube.com/watch?v=_VczPPYUAEI Head of Corporate Communications Markus Forytta | Fraunhofer-Institut für Werkstoff- und Strahltechnik IWS | Phone +49 351 83391-3614 | Winterbergstraße 28 | 01277 Dresden | www.iws.fraunhofer.de | markus.forytta@iws.fraunhofer.de Group Manager Bonding and Composite Technology Dipl.-Ing. Annett Klotzbach | Fraunhofer-Institut für Werkstoff- und Strahltechnik IWS | Phone +49 351 83391-3235 | Winterbergstraße 28 | 01277 Dresden | www.iws.fraunhofer.de | annett.klotzbach@iws.fraunhofer.de

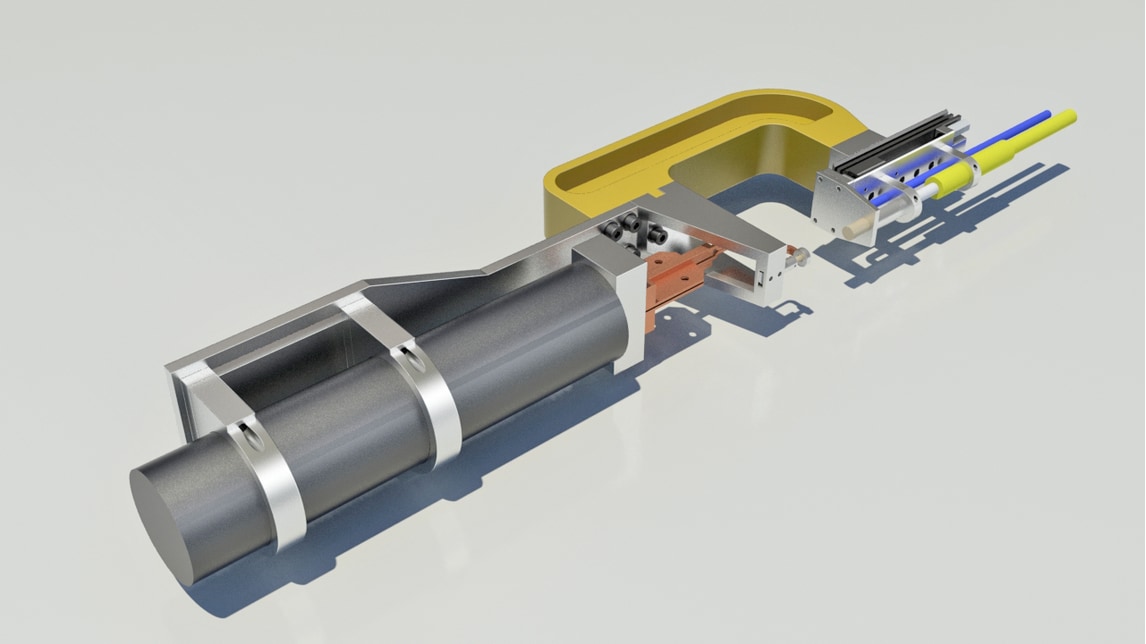

The joining gun bonds metal and plastic in seconds and can be mounted on a robot arm in place of a spot welding gun, for example. © Fraunhofer IWS Dresden
